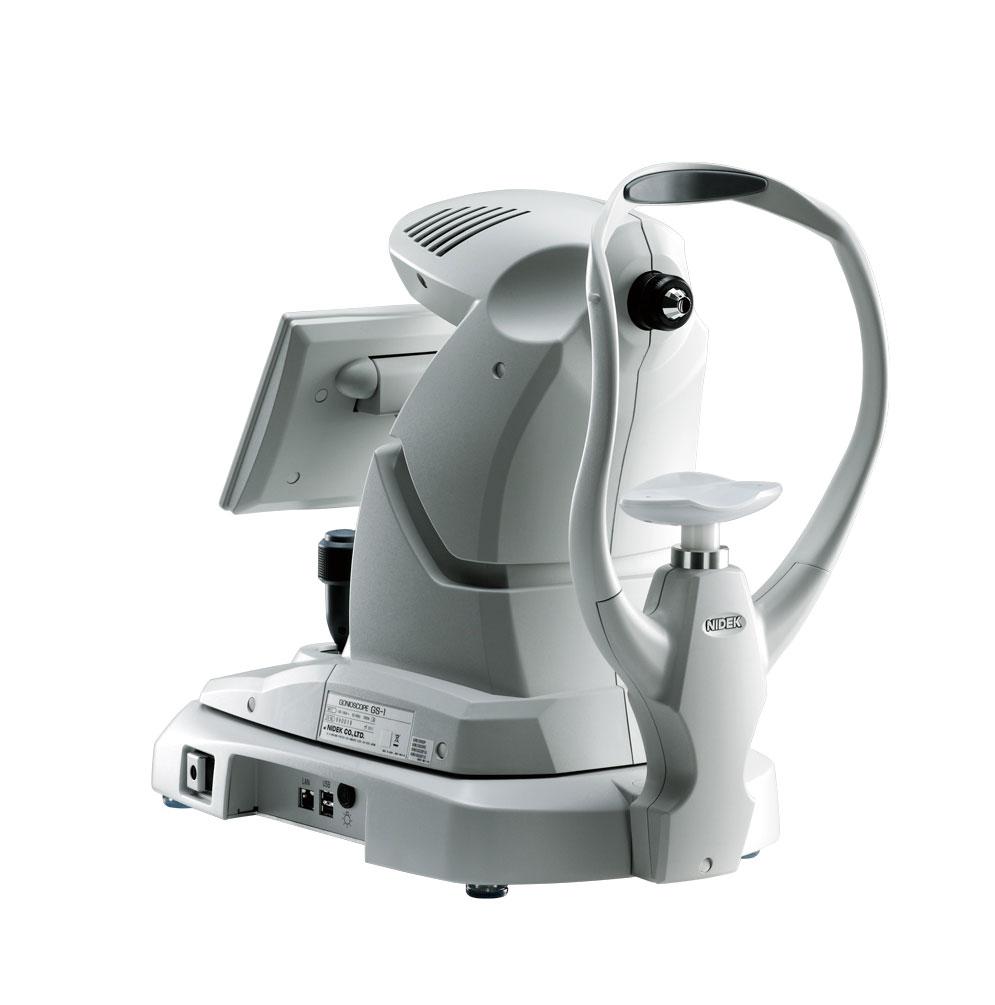

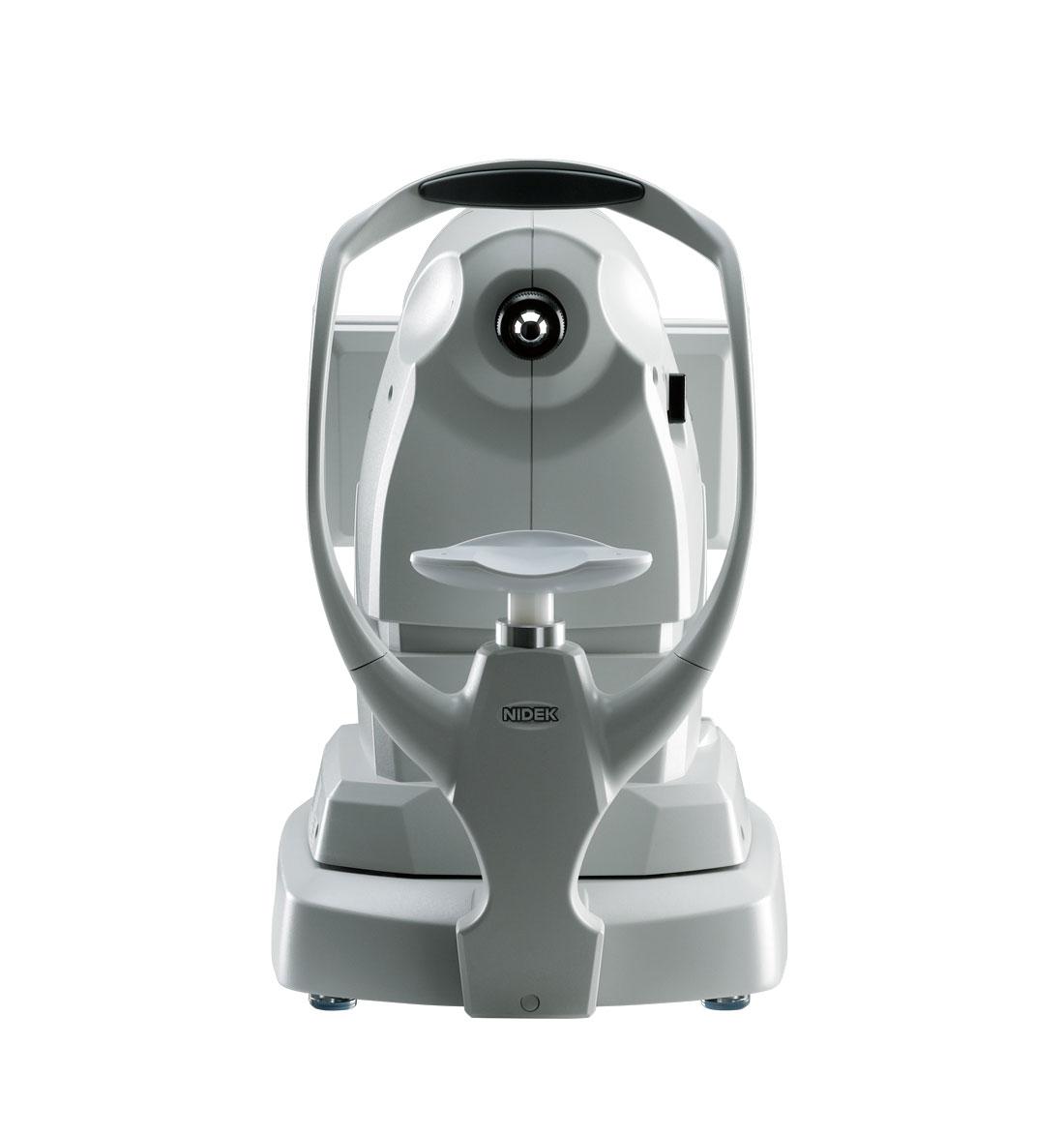

GS-1

The NIDEK goniolens GS-1 proposes a new colour imaging of the filtration angle over 360°. It is the only automated gonioscopes on the market. It provides a quicker and more frequent access to filtration angle data.

Summary
Description
Accessories
Cleaning
Documentation

Acquisition in 10 seconds
Acquisition over 360° or single image
Goldmann prism with 16 faceted mirrors
17 images captured per facet
Automatic tracking on X-Y axes
Automatic triggering of the image capture
Automatic reconstruction of the unwound angle over 360° (linear or circular stitching)

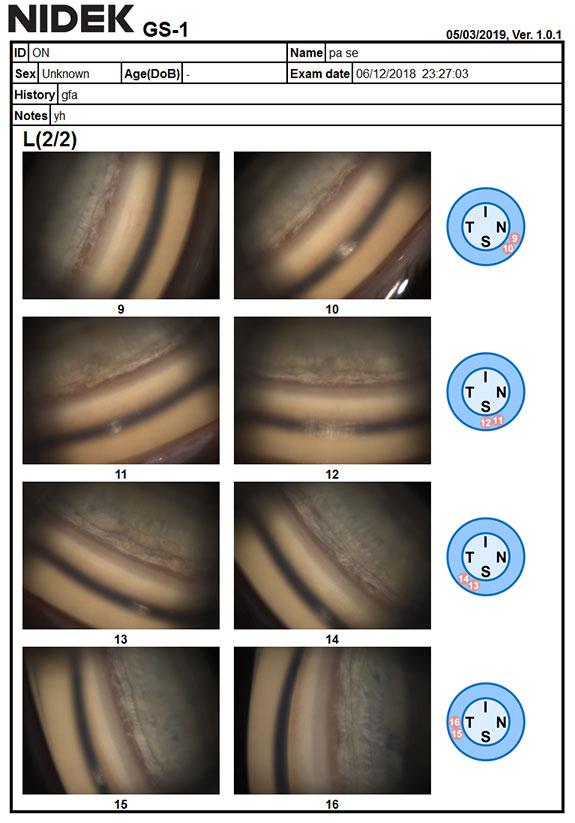

Examination reports
Internal fixation point and white LED source

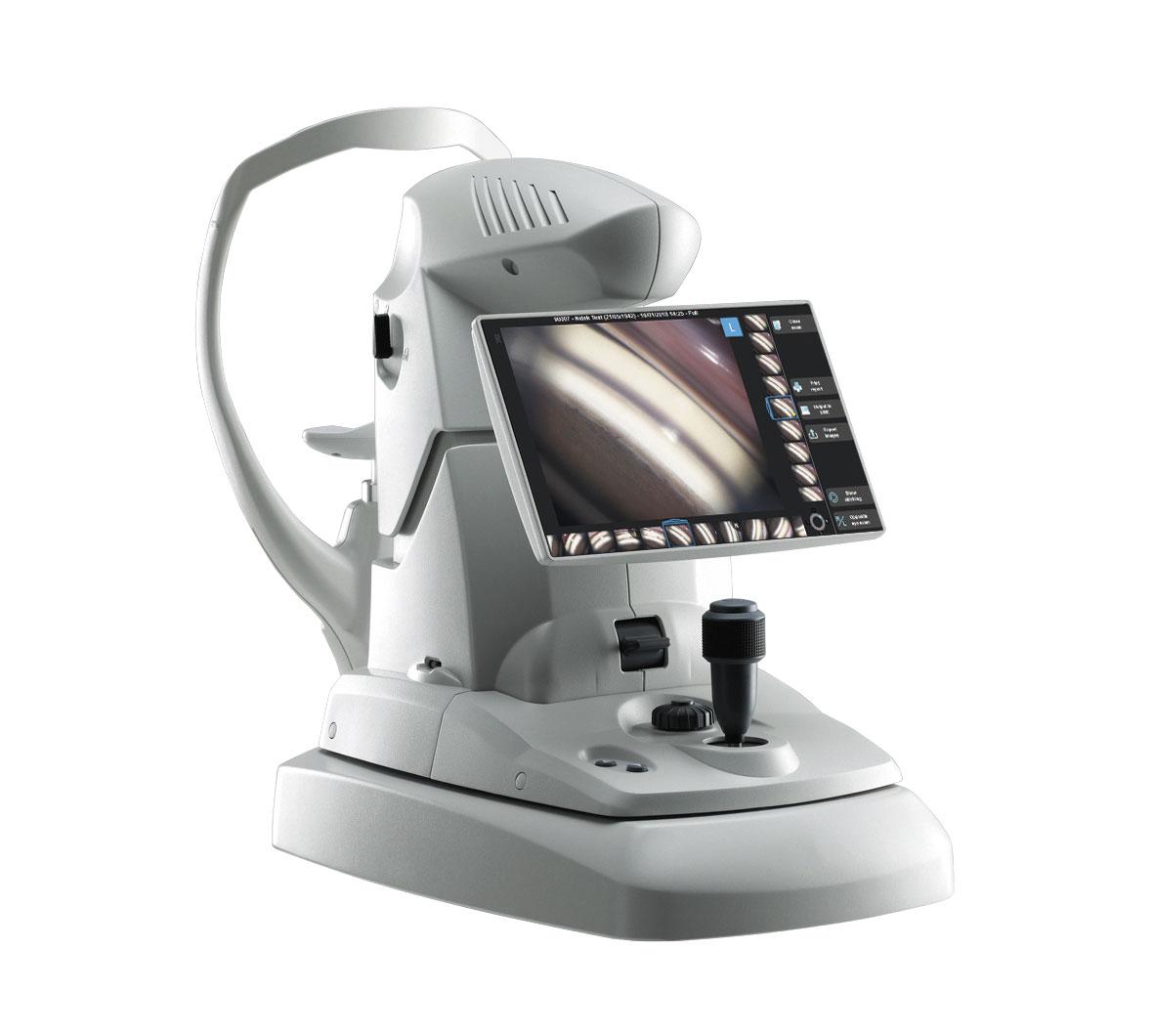

9’’, colour, rotating touchscreen

New colour imaging

With the GS-1, NIDEK SA innovates and makes the gonioscopy examination accessible, thanks to the automation of the acquisition of images of the filtration angle over 360°.

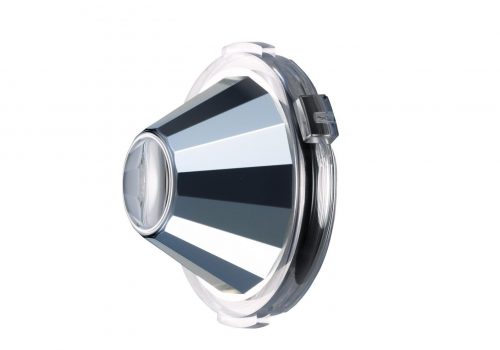

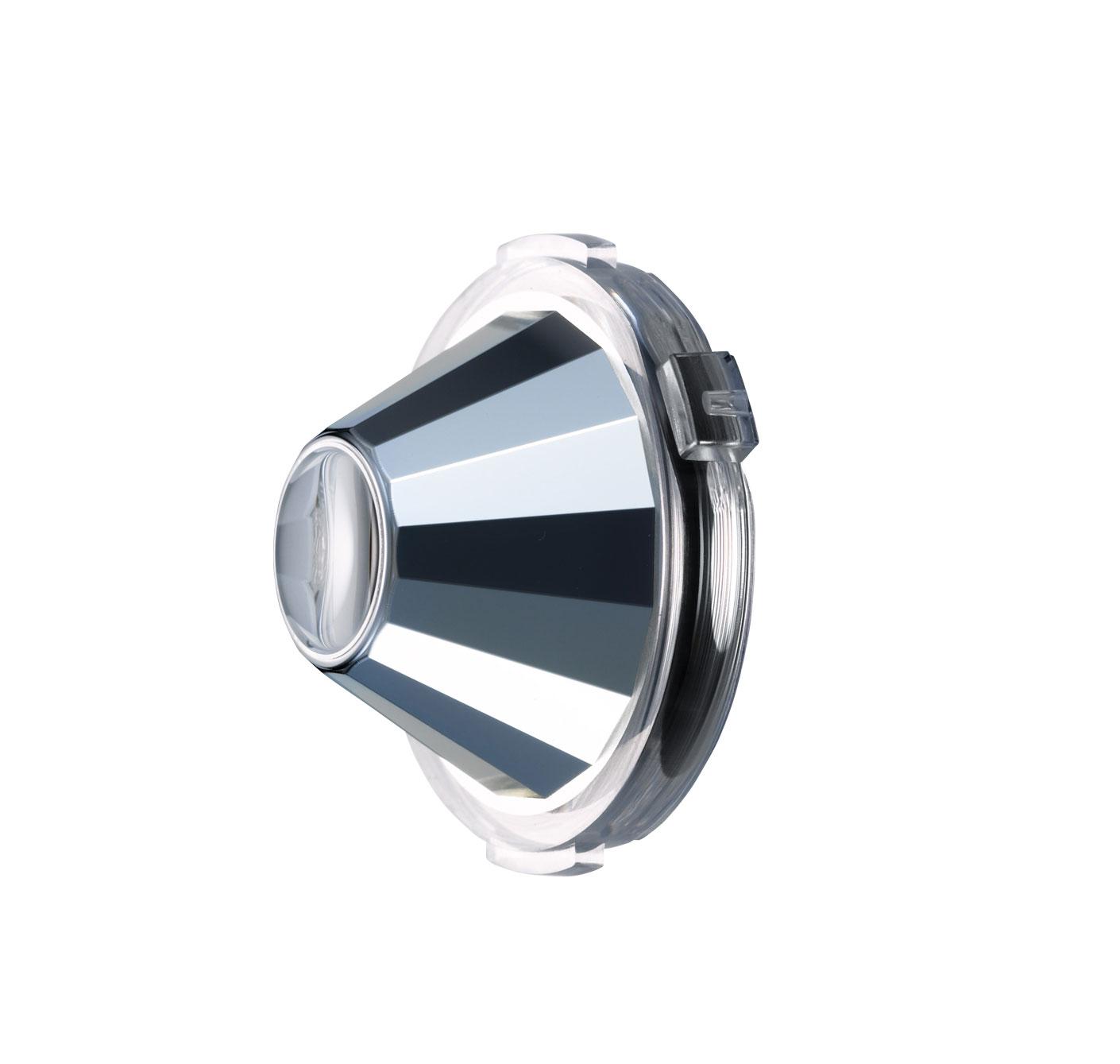

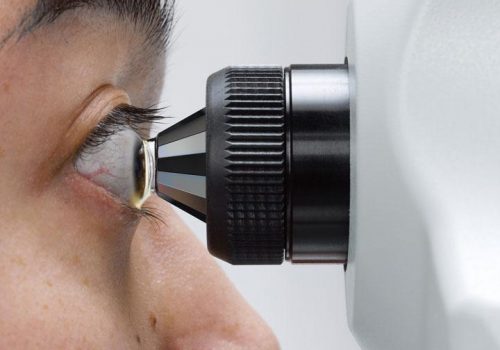

The gonioscopes GS-1 is equipped with a single acquisition cone made with 16 faceted mirrors reflecting the light under a 61° angle.

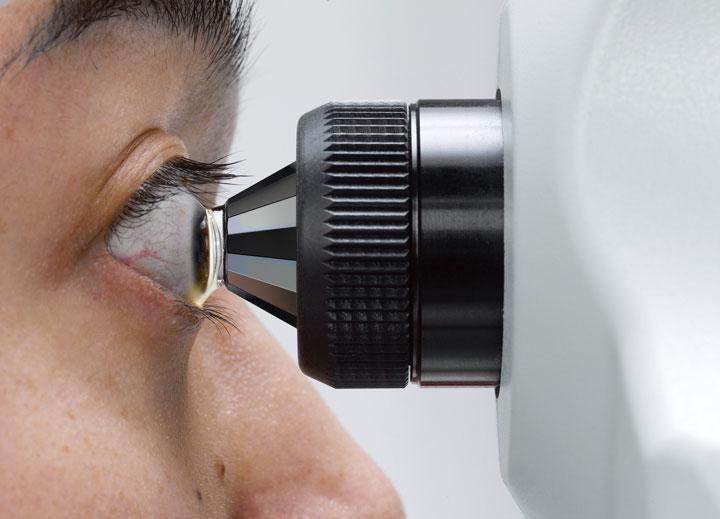

Applying a gel (thickness 1.5 mm) is required to capture images. The gel acts as an interface between the patient’s eye and the device.

Technological advance

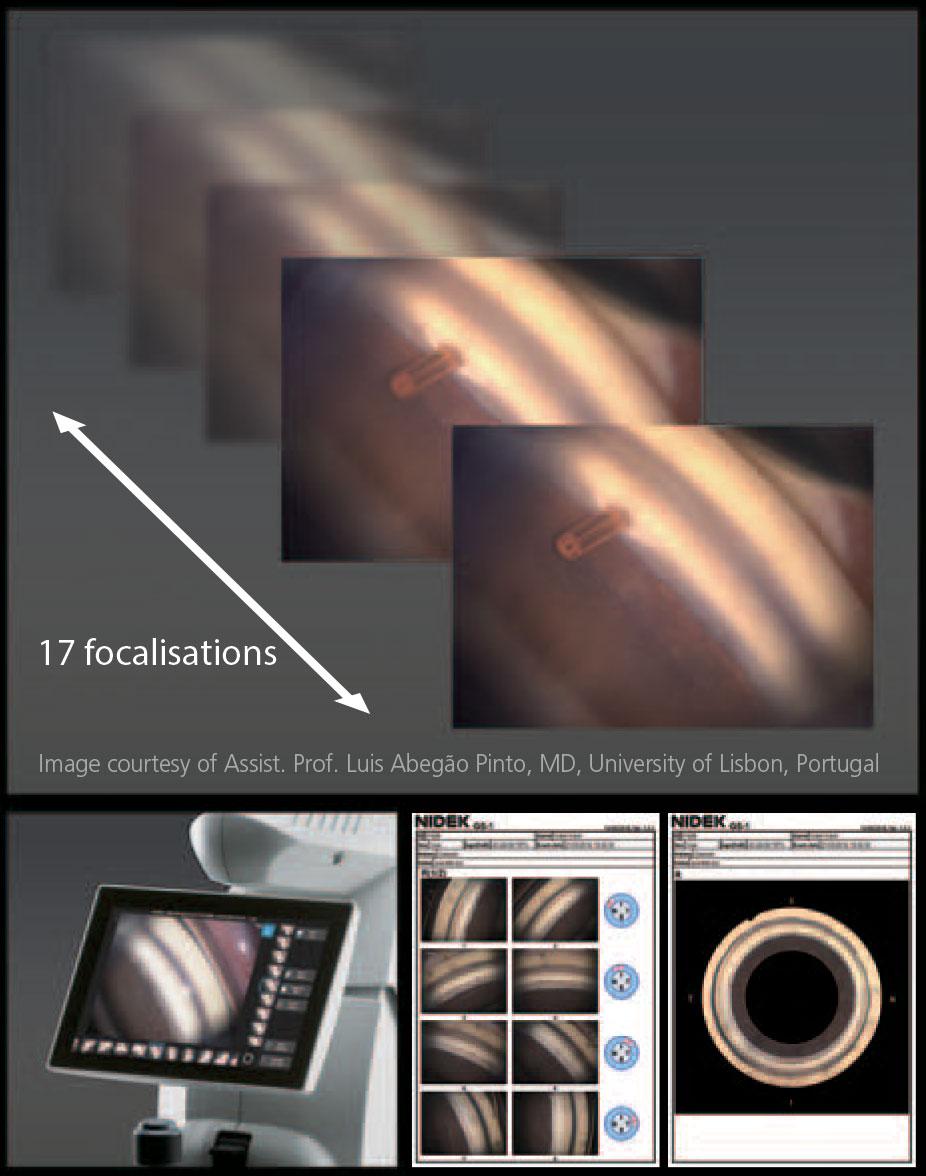

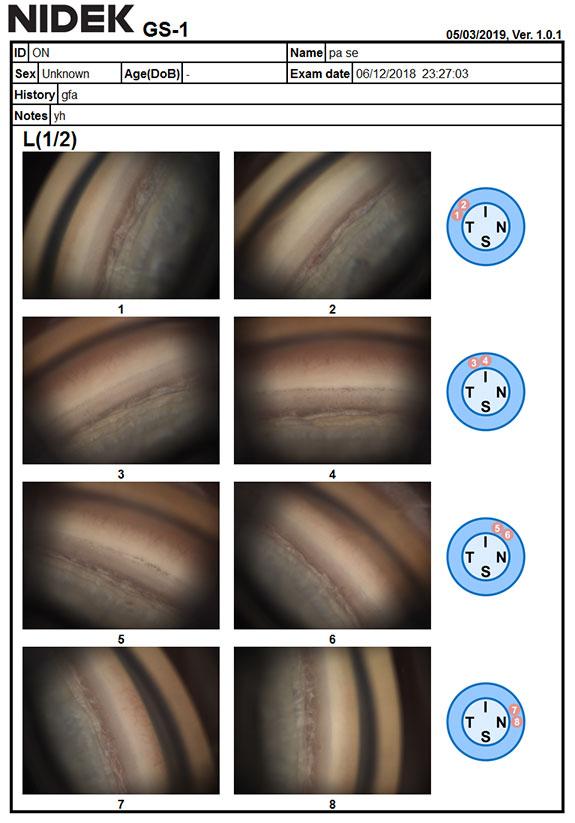

For each of the 16 facets, 17 images are acquired at different focal planes to ensure sharp images in the area of interest. A total of 272 images are acquired in 15 seconds. The image of the unrolled angle is then obtained by assembling the 16 different shots.

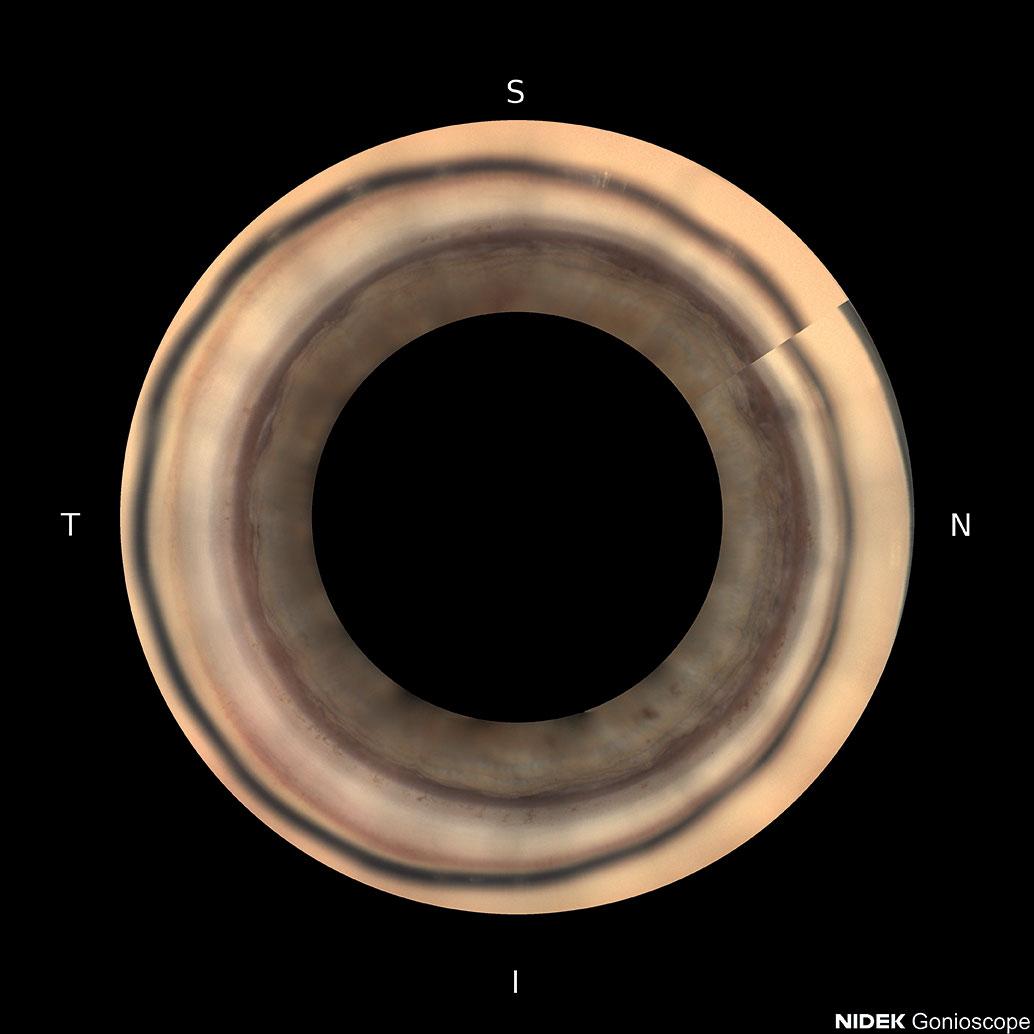

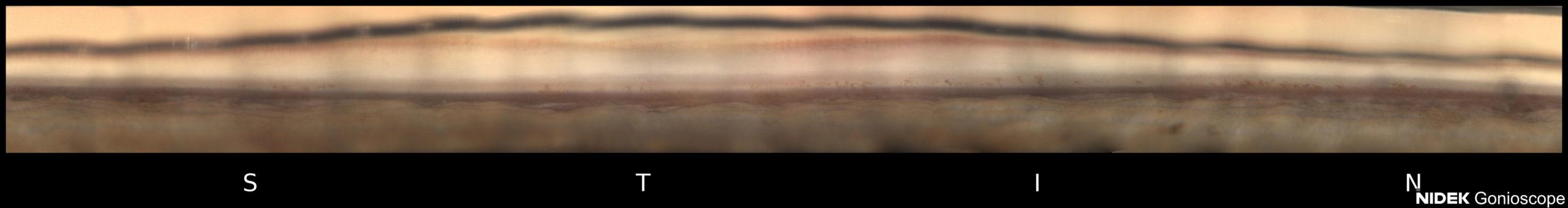

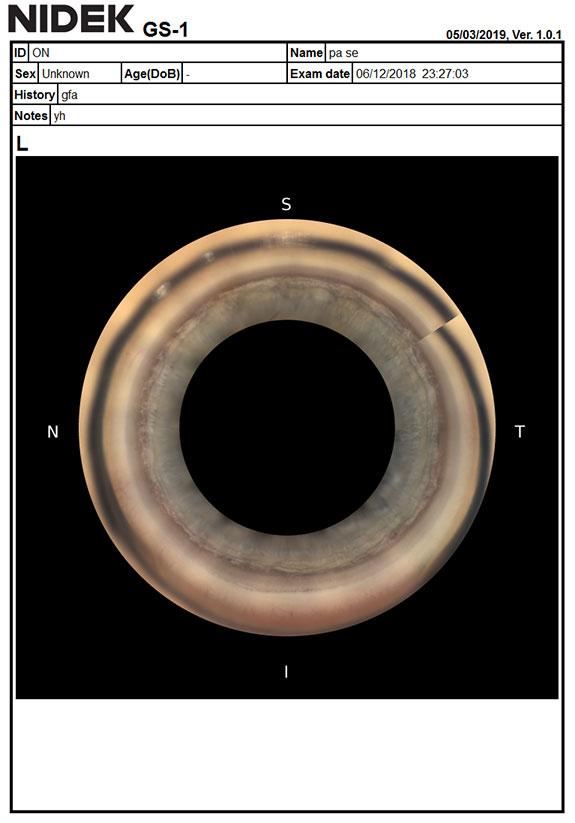

It can be viewed as a linear or circular representation depending on the user's viewing preferences. The image allows the analysis of the different anatomical landmarks of the iridocorneal angle and to assess its degree of openness as well as its pigmentation.

Original representation

The detection of anomalies around the angle is localised and saved to ensure an optimal tracking of the patient. Also the colour image of the unwound angle is used to schedule and control the mini-invasive surgeries in case of a glaucoma, with a better determination of the insertion site and to control the implantation of the material.

Data storage

The data are saved to improve the clinical following-up and the management of patients. So, you can easily and relate the examination reports to the patient’s file or transfer them to a colleague to get a help concerning the diagnosis. So the images collected can be used for educational purposes, whatever for the patients or the continuous training of ophthalmologists. So, using the automated gonioscopy, you benefit prom a quick and more frequent access to the filtration angle data. Also, following-up the patients is easier.

Automated gonioscopy provides a quicker and more frequent access to filtration angle data and an easier following-up of the patient.

Legal mentions

These mentions are conforms to the French regulation and may vary depending on circumstances in each country.

Standard accessories

Protective cover
3x multi-mirror cone
Ophthalmic gel (GS gel)

Optional accessories

External fixation point
RJ-45 communication cable

Consumables

Printing paper roller
3x multi-mirror acquisition cone
Ophthalmic gel (GS gel)

No cleaning instruction for this product
