TS-610

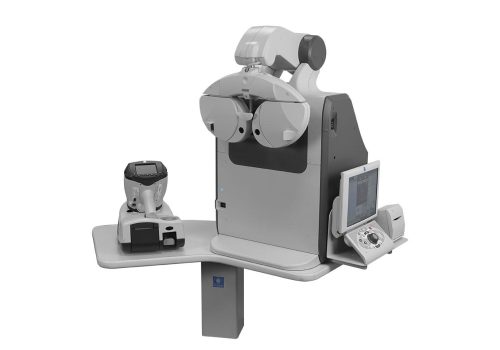

Compact and innovative subjective refraction system used to perform complete distance and near vision eye exams, with a footprint less than 1m2. System combining a visual test display and a RT-6100 automatic refractor. A new way to perform eye exams!
- Measurement range of spheres: from -29.00D to +26.75D
- Measurement range of cylinder: from 0 to +/- 6
- Simulation of 5 m projection distance in distance vision
- Simulation of 40 cm projection distance in near vision
- Quiet, continuous and quick scrolling of glasses
- Front position sensor (blue diode)
- Setting the pupillary half deviations for a more accurate examination
- Large 40° vision field
- Programming is possible to automate the eye examination
- Transfer of data to other NIDEK refraction instruments
- Can be connected to all the patient management software used in ophthalmology.
- The ‘Favourite’ feature is available
- The ‘Help’ feature is available
Innovative system
Innovative subjective refraction system comprising the NIDEK RT-6100 automatic refraction head integrated to a compact displaying system of optotypes and visual tests.
The TS-610 system combines the RT-6100, automatic refractor head measuring the refraction from -29D to +26.75D, and a revolutionary screen able to adapt to a 5 m measure and a 40 cm measure. All visual acuity tests and binocular and optometric function tests can be performed in near and distance vision.

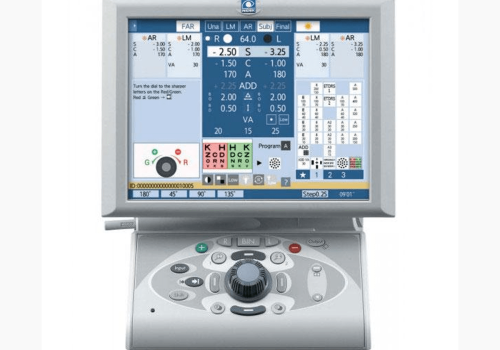

The intuitive control touchscreen panel can communicate with the auto-refractometer and the lensometer to perform easy and quick exams.The intuitive control touchscreen panel can communicate with the auto-refractometer and the lensometer to perform easy and quick exams.
Compact system

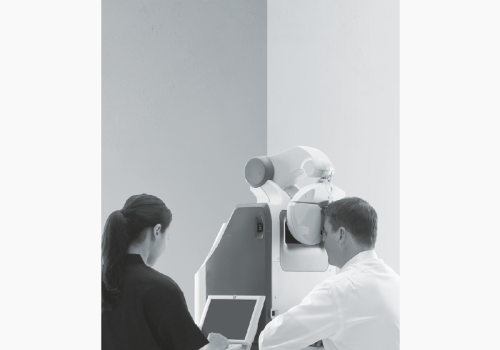

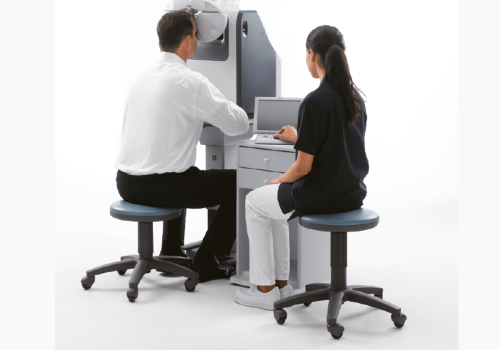

It has been designed to integrate all sorts of spaces, as the examination can be performed whatever the patient is sitting or standing.

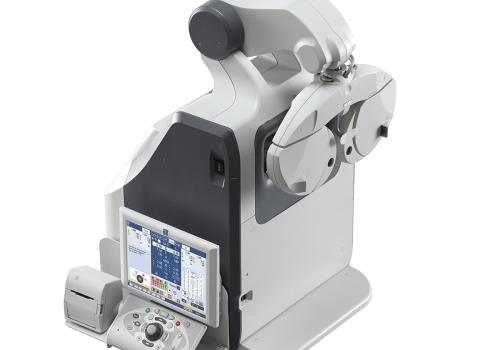

The system TS-310 saves space in facilities. Indeed the refractor head is powered and moves up and down on the same axis to save space horizontally.
The LCD screen controls the contrast and integrates different patented systems to reduce the accommodation and to provide accurate and reliable results, similar to those of an exam performed in usual conditions.
Simple integration
The entire examination of the subjective refraction is performed in a space less than 1m2, thanks to a slant internal mirror, to perform vertical projections. The reduction of space represents 90% of a conventional facility.
As the TS-610 is symmetrical (adjustment buttons on the left and on the right), positioning it is very flexible, whatever the location (examination rooms, mobile-detection vehicles, treatment rooms, etc.)
Indications : dispositif médical de classe I/CE. Le RT-6100 est un appareil qui fournit les moyens de positionner des verres sphériques et cylindriques, des prismes ou d’autres dispositifs optiques devant les yeux
d’un patient dans le but de déterminer l’erreur réfractive et les fonctions binoculaires. Il peut également être combiné avec un appareil qui projette optiquement des tests de vision de loin et de vision de près.
Informations de bon usage : dispositif médical destiné aux professionnels de santé. Les précautions de sécurité et les procédures d’utilisation doivent être parfaitement assimilées avant l’utilisation de ce
dispositif.Veuillez lire attentivement les instructions figurant dans le manuel d’utilisation. Matériel fabriqué par NIDEK CO.,LTD. Date de dernière mise à jour : avril 2019.
Standard accessories
- Protective cover
- Printing paper roller
- Stylus for touchscreen
- Control panel holder
Optional accessories
- RJ-45 communication cable
- Memory box (MEM-200)
- Lifting tables
Consumables
- Printing paper roller
