Tables à élévation Up

The Up range of lift tables includes several tray models for all needs.

Summary
Description
Accessories
Cleaning
Documentation

· 66 cm displacement

· Up mini

Référence : HTA0018

Tray dimensions : L 550 x W 450 mm
Tray displacement : 60 to 126 cm
Charge maximale : 80 kg

· Table 1 Instruments PMR Up

Référence : HTA0019
Tray dimensions : L 952 x W 563 mm
Tray displacement : 60 to 126 cm
Charge maximale : 80 kg

· Table 2 Instruments PMR Up

Références :

HTA0020 – Plateau 2 instruments en V
HTA0021 – Plateau 2 instruments droit

Dimensions de plateau :

Plateau 2 instruments en V : L 960 x W 556 mm
Plateau 2 instruments droit : L 1100 x W 450 mm

Tray displacement : 60 to 126 cm
Maximum load : 80 kg

The Up range of lift tables was created with NIDEK expertise in consultation units and is designed and manufactured in St Priest. In addition to the units, Up tables are also available with two types of feet and four different tray shapes.

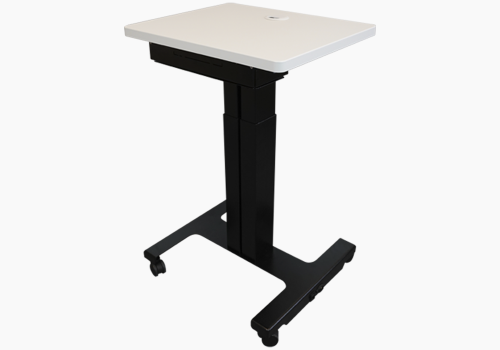

The Up Mini table has a central double-column foot and a compact tray (55 cmx45 cm). It is designed to fit into a small space and house an instrument.

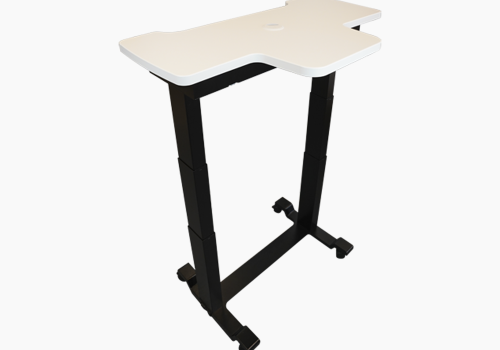

With their two off-centre elevation columns, Up tables can be used with patients in wheelchairs. Several types of trays for one and two instruments are available for all needs and surface areas.

All Up tables offer 66 cm (60 to 126 cm) displacement so that patients can stand or sit.

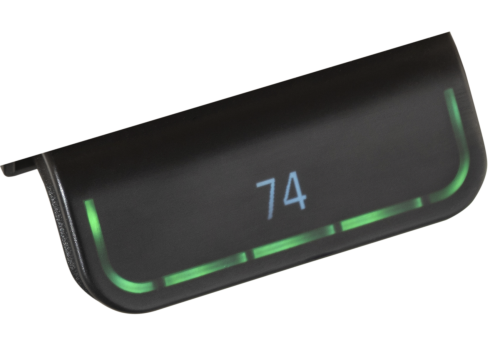

Tray height is indicated in real time on the simple and intuitive console. Four preferred heights can be saved to streamline patient use.

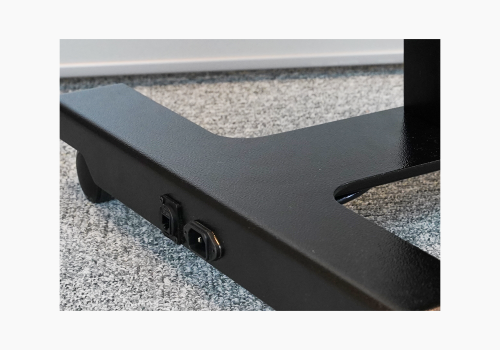

Castors and a single power and network outlet at the base of the table guarantee perfect stability and mobility.

Tray veneer options give the Up range a unique style.

Legal mentions

Indications : dispositif médical de Classe I / CE. La table électrique UP (standard, PMR, 2 instruments plateau en V, GlassPop) permet de pratiquer un examen ophtalmologique. Ce dispositif évite les déplacements de l’ophtalmologue et du patient, en adaptant la position des instruments d’ophtalmologie à ces derniers de manière électrique.

Informations de bon usage : dispositif médical destiné aux professionnels de santé ou par des utilisateurs formés par ces professionnels de santé. Les précautions de sécurité et les procédures d’utilisation doivent être parfaitement assimilées avant l’utilisation de ce dispositif. Veuillez lire attentivement les instructions figurant dans le manuel d’utilisation.
Matériel fabriqué par NIDEK SA. Date de dernière mise à jour : septembre 2021
